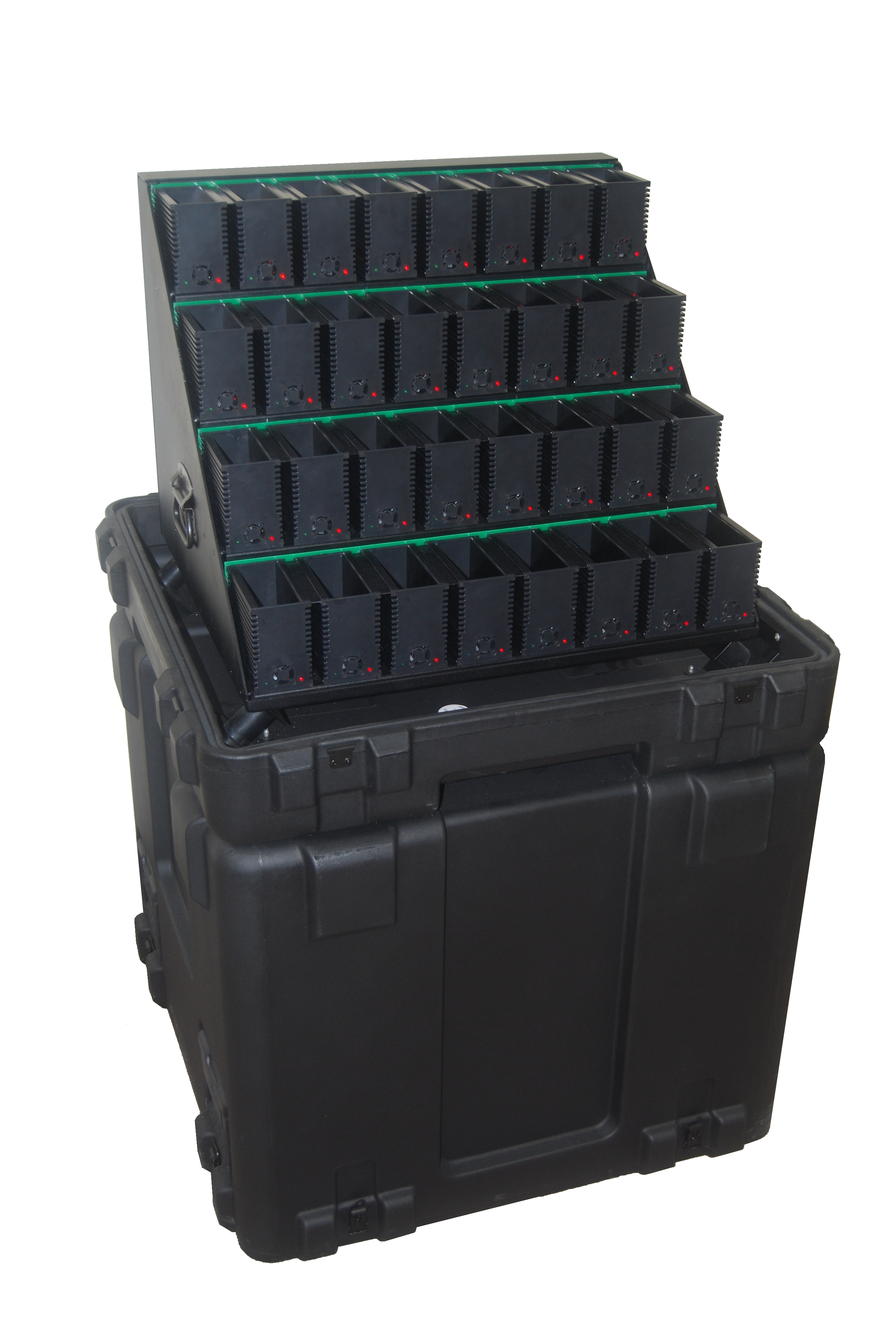

PC-3200M/C, Battery Charger, NSN: 6130-01-585-1671, 32-Station, Land Warrior LW & LWH

Lithium-Ion Battery Charger

32-Station Bulk Battery Charger

Typical Applications

  • Bulk charging for depot and field settings
  • Land Warrior (LW, LWH & LI) Li-Ion Battery



Standards Compliance

  • SBC v1.1 smart charger compliant
  • SMBus v1.1 compliant
  • Manufactured under ISO 9001:2008 certified quality system

Key Features

  • Simultaneous charging
  • Smart charger technology
  • LED display for each battery charging position 32-position battery charging capability
  • Unattended charging
  • Rugged, environment resistant case
  • Charges up to 16 batteries simultaneously – FIFO protocol
  • Battery and charger communicate for optimum charging efficiency, battery life and safety
  • Easy battery connection – no cables required
  • Batteries contained in charger for charge cycle duration
Model No PC-3200M/C
NSN 6130-01-585-1671
AC Input Range 90 to 260VAC; 50-60Hz
Battery Charge Voltage 8.4VDC to 16.8VDC max. per position
Battery Charge Current

3 Amps max. per position

Communication SMBus spec v1.1; SBC v1.1; Smart Charger
Battery Connection Pogo pin contacts for charge and SMBus
Charger Indicators

LED Indicators:

• Flashing green LED – Charging
• Solid green LED – Fully Charged
• Flashing red LED – Error
• Solid red LED – Waiting for Charging to Start

Weight 112 lbs. (51 Kg)
Dimensions Closed: 31”L x 31”W x 29”H (79cm x 79cm x 74cm) / Open: 31”L x 31”W x 47”H (79cm x 79cm x 120cm)
Battery Charging Temp 0° C to +45° C (+32°F to +113°F)
Operating Temp -20°C to +60°C (-4°F to +140°F)
Storage Temp -40° C to +70° C (-40°F to +158°F)
Operating Altitude 27,000 ft. (8,229.6 m)
Storage Altitude 55,000 ft. (16,764 m)
Humidity 95% relative
Color Black
Exterior Carrying Case Hard plastic case
Charger Housing Aluminum
Harmonized Tariff Code 8504.40.9550
  • PB-LW-01
  • PB-LW-01-NC
  • PB-LW-02
  • PB-LW-02-NC
  • PB-LW-03
  • PB-LW-04
  • PB-LW-05
  • PB-LW-05-01
  • PB-LW-06
  • PB-LW-07
  • PB-LW-08
  • PB-LWH-01
  • PB-LWH-01-NC
  • PB-LWH-02
  • PB-LWH-02-NC
  • PB-LWH-03
  • PB-LWH-04
  • PB-LWH-05
  • PB-LWH-05-01
  • PB-LWH-06
  • PB-LWH-06-NC
  • PB-LWH-07
  • PB-LWH-08
  • PB-LWU-02-NC
  • UBBL03
  • LI-7
  • UBBL06
  • LI-145
  • UBBL08
  • LI-80
  • UBBL12
  • UBBL06-01
  • LI-175
  • BT-70868BG
  • BT-70868BE
  • BT-70868BK
  • BT-70867BG
